ASTM C518 ISO8301 GB/T10295 Thermal Conductivity Meter and Heat Flow Meter for Fiber Board Testing

ASTM C518 ISO8301 GB/T10295 Thermal Conductivity Meter and Heat Flow Meter for Fiber Board Testing
ASTM C518 ISO8301 GB/T10295 Thermal Conductivity Meter and Heat Flow Meter for Fiber Board Testing ASTM C518 ISO8301 GB/T10295 Thermal Conductivity Meter and Heat Flow Meter for Fiber Board Testing ASTM C518 ISO8301 GB/T10295 Thermal Conductivity Meter and Heat Flow Meter for Fiber Board Testing ASTM C518 ISO8301 GB/T10295 Thermal Conductivity Meter and Heat Flow Meter for Fiber Board Testing ASTM C518 ISO8301 GB/T10295 Thermal Conductivity Meter and Heat Flow Meter for Fiber Board Testing

Gambar besar :  ASTM C518 ISO8301 GB/T10295 Thermal Conductivity Meter and Heat Flow Meter for Fiber Board Testing

Detail produk:
Tempat asal: CINA
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Harga: $5,290-5,580
Kontak

ASTM C518 ISO8301 GB/T10295 Thermal Conductivity Meter and Heat Flow Meter for Fiber Board Testing

Deskripsi
Ketepatan: 3% Kekuatan: 1.2kw
Kelas Perlindungan: IP56 Voltase: 220 V, 380 V, 240 V, 110 V
Kisaran konduktivitas termal: 0,005 ~ 3 W/mK Sistem pendingin: Pemandian air eksternal/udara bertekanan
Suhu pelat panas: Suhu kamar~99,99℃ Suhu pelat dingin: 5 ~ 50 ℃
Akurasi suhu: 0,1 ℃ Resolusi Suhu: 0,01 ℃
Ukuran Spesimen: 300×300×50mm Rentang resistansi termal: 0,1 ~ 8,0 m2K/W
Pengulangan: 1% Kondisi lingkungan: 18~25℃, 20~80%RH
Tegangan suplai: AC 220V±5%, 3,0kw
Menyoroti:

ASTM C518 Thermal Conductivity Meter

,

ISO8301 Heat Flow Meter

,

GB/T10295 Thermal Conductometer

ASTM C518 Heat Flow Conductivity Meter Thermal Conductometer
The ASTM C518 Heat Flow Conductivity Meter is designed for precise thermal conductivity testing of insulation materials. It delivers rapid, stable measurements with quick response to sample characteristics, thanks to its precise plate temperature control and dual heat flow sensor configuration.
Applications
  • Fiber board
  • Loose filler glass fiber
  • Ceramic fiber
  • Foam plastic (XPS/EPS/PUR, etc.)
  • Inter-layer composite plate
  • Vacuum plate
  • Rubber products
  • Cement/concrete products
Key Features
  • Rapid stabilization and measurement (some materials in minutes)
  • Flexible measurement duration for QC or extended testing
  • Complies with ASTMC518, ISO8301, and GB/T10295 standards
  • QC and process control tests under 5 minutes
Technical Specifications
Parameter Specification
Thermal conductivity range 0.005 ~ 3 W/m.K
Cooling system External water bath/compressed air
Hot plate temperature Room temperature~99.99℃
Cold plate temperature 5~50℃
Temperature accuracy/resolution 0.1℃/0.01℃
Specimen quantity & sizes (Max) 1 piece, 300×300×50 mm
Measure thickness automatically High-precision displacement sensor with 0.01mm resolution
Thermal resistance range 0.1 ~ 8.0 m²K/W
Repeatability 1%
Accuracy 3%
Environmental condition Room temperature: 18~25℃, humidity: 20~80%RH
Data result analysis Automatic thermal analysis software for Windows 8/7/XP
Supply voltage AC 220V±5%, power: 3.0kw
Standard Package Includes
  • Test host
  • Accurate thermostatic bath
  • Testing software
  • Communication line

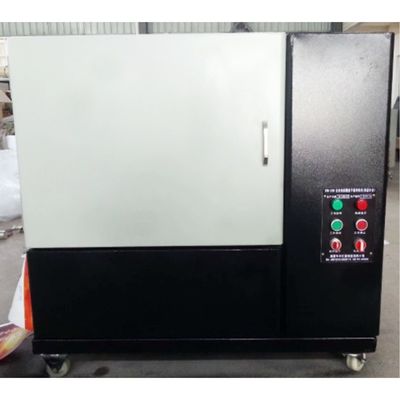

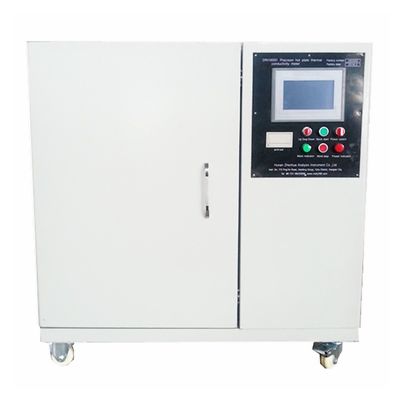

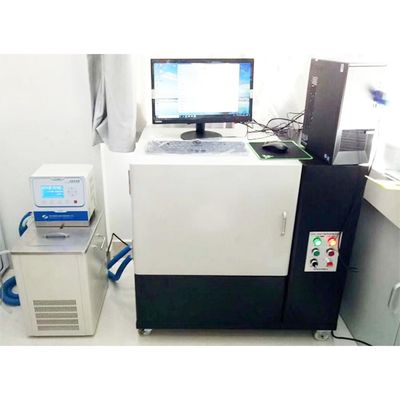

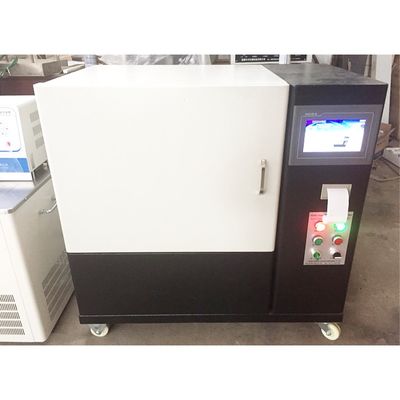

Product Images
ASTM C518 ISO8301 GB/T10295 Thermal Conductivity Meter and Heat Flow Meter for Fiber Board Testing 0 ASTM C518 ISO8301 GB/T10295 Thermal Conductivity Meter and Heat Flow Meter for Fiber Board Testing 1
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high-technology production-oriented enterprise specializing in developing, manufacturing, and marketing environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we serve customers in over 150 countries.
ASTM C518 ISO8301 GB/T10295 Thermal Conductivity Meter and Heat Flow Meter for Fiber Board Testing 2
Frequently Asked Questions
1. Are you the manufacturer? What about after-sales service and warranty?
Yes, we are a professional manufacturer of testing equipment. All machines come with a 12-month warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty and offer technical support via email or video chat, with solutions typically provided within 24-48 hours.
2. What's the delivery time?
Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.
3. Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to customer requirements, including OEM services with your logo on the equipment.
4. How can I install and use the machine?
We provide English operation videos with each machine. Most units are shipped fully assembled - just connect the power cable to begin use. For complex installations, we can provide on-site assistance if necessary.
ASTM C518 ISO8301 GB/T10295 Thermal Conductivity Meter and Heat Flow Meter for Fiber Board Testing 3
