Universal Tensile Testing Machine 2000N with 850mm Stroke

Universal Tensile Testing Machine 2000N with 850mm Stroke
Universal Tensile Testing Machine 2000N with 850mm Stroke Universal Tensile Testing Machine 2000N with 850mm Stroke Universal Tensile Testing Machine 2000N with 850mm Stroke Universal Tensile Testing Machine 2000N with 850mm Stroke Universal Tensile Testing Machine 2000N with 850mm Stroke Universal Tensile Testing Machine 2000N with 850mm Stroke

Gambar besar :  Universal Tensile Testing Machine 2000N with 850mm Stroke

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: Liyi
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kontak

Universal Tensile Testing Machine 2000N with 850mm Stroke

Deskripsi
Kekuatan: 400W Ketepatan: ± 0,5%
Voltase: 220V, 380V, 240V, 110V Kelas Perlindungan: IP65
Berat: 75kg Tes minimum: 3g
Kecepatan tes: 0,1 ~ 500mm / mnt Catu daya: 220V 50Hz / 380V 60hZ
Test Stroke: 850mm (berisi klem) Motor: motor sevor panasonic
Kekuatan Maks: 2000n Resolusi: 1/250.000, 1/150.000
Pilihan kapasitas: 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 5000 kg opsional Paksa Kesalahan: ± 0,5%
Kesalahan perpindahan: ± 0,5%
Menyoroti:

Universal Testing Machine 2000N capacity

,

Tensile Testing Machine 850mm stroke

,

Universal Testing Machine with warranty

Liyi Manufacturing Universal Tensile Strength Tester / Universal Testing Machine
Product Overview
The Liyi Universal Tensile Strength Tester is specially designed for the fabric industry, capable of testing numerous materials including semi-finished and finished products. This versatile testing machine is widely used for push and pull testing across various industries including metal, yarn, textiles, leather, plastic, rubber, and cable.
Key Features
  • Built-in printer for test result output

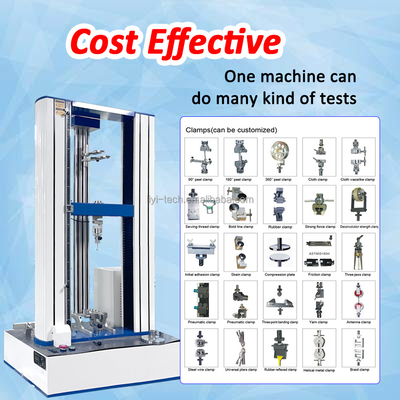

  • Customizable clamps and test stroke available
  • Maximum force capacity of 2000N
  • Complies with multiple international standards: CNS11888, JIS-K6854, PSTC7, ASTM D903, GB/T2790/2791/2792

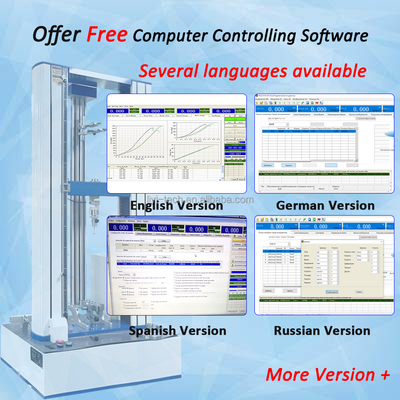

  • Windows-based operation system
  • Includes computer, printer, and system operation manual
Technical Specifications
Attribute Value
Warranty 12 months
Customized Support OEM, ODM
Power 400W

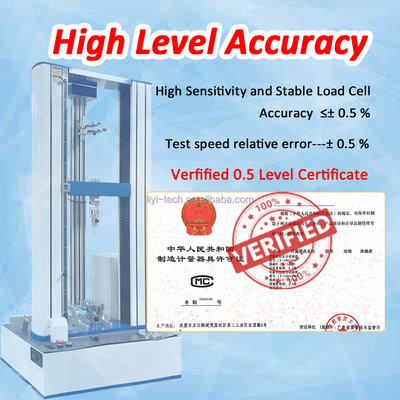

Accuracy 0.5%
Voltage 220V, 380V, 240V, 110V
Protection Class IP65
Weight 75kg
Minimum Test 3g
Test Speed 0.1~500mm/min
Power Supply 220V 50Hz / 380V 60Hz
Standard ASTM ISO EN JS
Test Stroke 850mm (Contain Clamps)
Motor Panasonic Servo Motor
Model Specifications

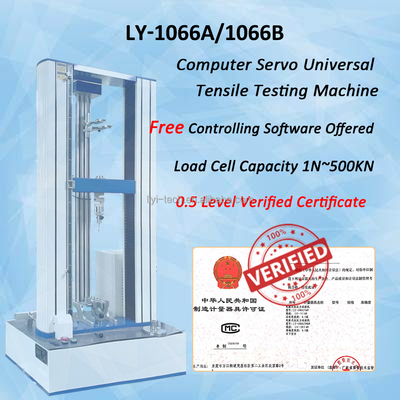

Specification LY-1066A LY-1066B
Range of Speed 0.1~500mm/min 50~500 mm/min
Motor Panasonic servo motor AC motor
Resolution 1/250,000 1/150,000
Capacity Choice 1, 2, 5,10, 20, 50,100, 200, 500,1000,2000,5000 kg optional
Stroke 1200 mm (can be customized)
Accuracy ± 0.5 %
Force Relative Error ± 0.5 %
Displacement Relative Error ± 0.5 %
Test Speed Relative Error ± 0.5 %
Weight 150 kg
Dimension (W × D × H) 80 × 50 × 150 cm
Power 1 PH, AC 220 V, 50/60 Hz

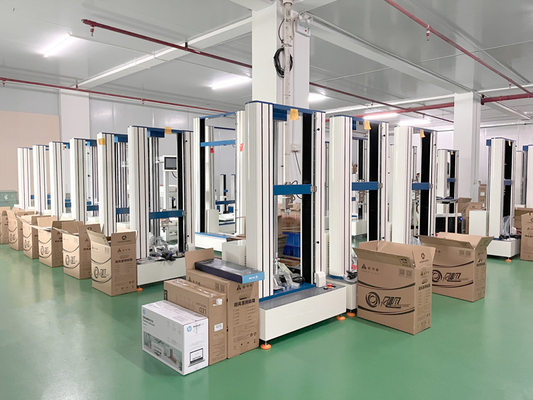

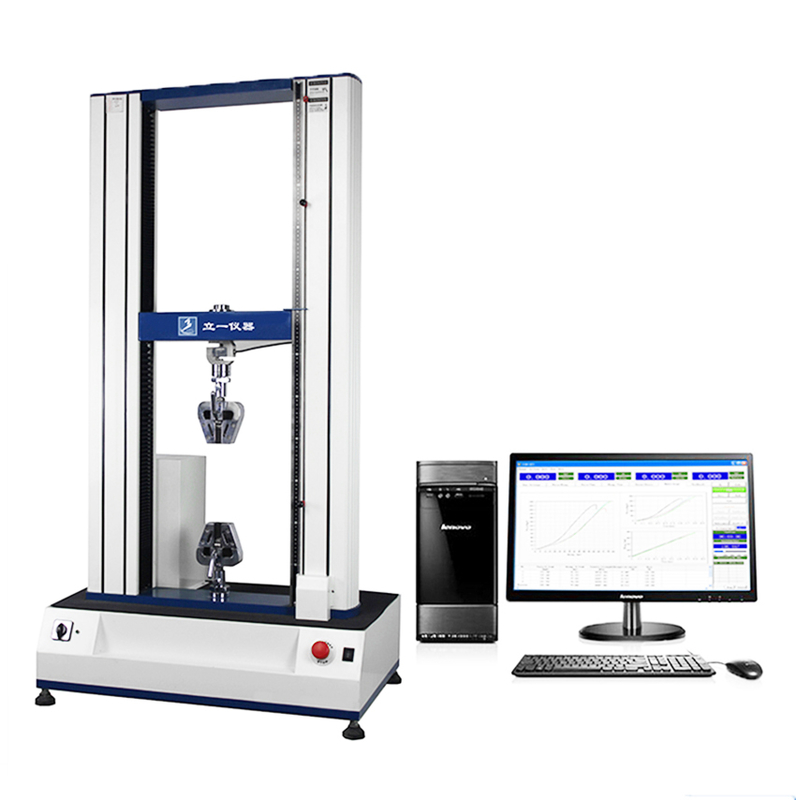

Product Images
Universal Tensile Testing Machine 2000N with 850mm Stroke 0 Universal Tensile Testing Machine 2000N with 850mm Stroke 1 Universal Tensile Testing Machine 2000N with 850mm Stroke 2 Universal Tensile Testing Machine 2000N with 850mm Stroke 3 Universal Tensile Testing Machine 2000N with 850mm Stroke 4 Universal Tensile Testing Machine 2000N with 850mm Stroke 5 Universal Tensile Testing Machine 2000N with 850mm Stroke 6 Universal Tensile Testing Machine 2000N with 850mm Stroke 7
Frequently Asked Questions
Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional manufacturers in China. Every machine purchased from our factory comes with a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2 months extension considering sea transportation time. If your machine doesn't work, you can contact us via email or phone, and we will provide solutions within 24 to 48 hours after confirming the problem.
What's the delivery term?
For standard machines, we typically have stock available. If no stock is available, delivery time is usually 15-20 working days after deposit receipt. We can make special arrangements for urgent orders.
Do you accept customization service? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the machine.
How can I install and use the machine?
We provide an English operation video via email after purchase. Most machines are shipped fully assembled - you only need to connect the power cable to begin use. If necessary, we can assist with on-site installation.
