Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards

Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards
Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards

Gambar besar :  Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: LIYI
Nomor model: Liyi
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kontak

Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards

Deskripsi
Kekuatan: 3kw Voltase: 220 V, 380 V, 240 V, 110 V
Motor: motor sevor panasonic Kapasitas: 5,10,20,50.100.200.500,1000,2000,5000kg Opsional
Stroke: 800mm (tidak termasuk fixture) Kecepatan tes: 0,5 ~ 500mm/mnt (kontrol dengan input keyboard)
Ketepatan: 0,5% atau lebih baik Resolusi: 1/250.000
Catu daya: 220V/50Hz atau 110V/60Hz Ukuran: 80*50*150cm
Kapasitas muatan maksimal: 500kg Sel beban opsional: 1,2,5,10,20,50,100.200.500kg
Paksa kesalahan relatif: ± 0,5% Rentang kecepatan tes: 0,1 ~ 500mm / mnt
Test Stroke: 850mm (berisi klem)
Menyoroti:

ASTM D903 Universal Testing Machine

,

GB/T2790/2791/2792 Tensile Strength Tester

,

CNS11888 Material Testing Machine

Liyi Paper Measuring Tensile Machine Instrument Universal Test Material Textile Digital Tensile Strength Tester
Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 0 Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 1
Product Description

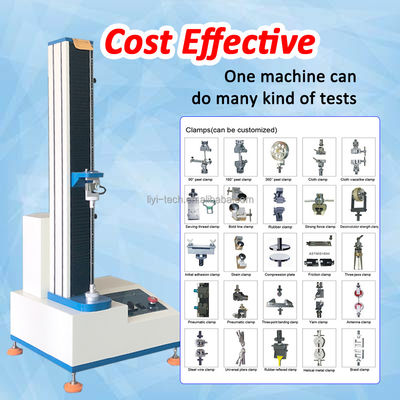

The Liyi universal testing machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling tests on various materials including:
  • Metals, composites, and alloys
  • Rigid plastics and films
  • Elastomers and textiles
  • Paper, board, and finished products
Design Standards
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Specifications

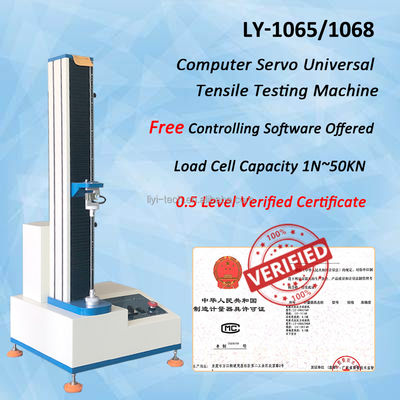

Model LY-1065 LY-1068
Accuracy Class 0.5 0.5
Max Load Capacity 500KG
Optional Load Cell 1,2,5,10,20,50,100,200,500kg
Resolution 1/250,000 1/150,000
Force Relative Error ±0.5% ±0.5%
Test Speed Range 0.1~500mm/min 50~500mm/min
Motor Panasonic Sevor Motor AC Inverter Motor
Test Stroke (Contain Clamps) 850mm
Product Details
Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 2 Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 3 Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 4 Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 5 Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 6 Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 7 Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 8 Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 9 Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 10 Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 11 Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 12 Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 13
Company Profile
Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise specializing in developing, manufacturing, and marketing environmental testing equipment. We feature:
  • Advanced technology and experienced technical management
  • Efficient professional service staff
  • Fine quality management and perfect after-sales service system

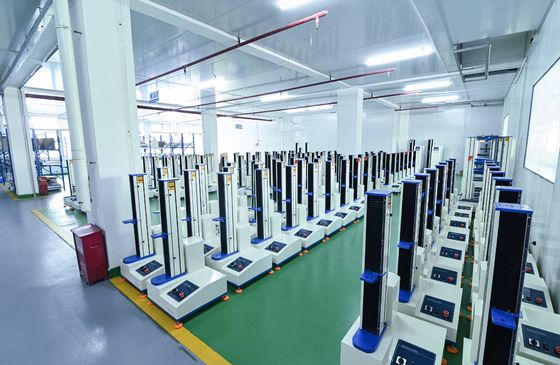

Our production base is located in Dongguan, Guangdong province, China, with an additional office in Kunshan, Jiangsu province for Eastern China marketing and servicing. We serve customers from more than 150 countries and regions, committed to helping customers establish testing labs to ensure product quality.
Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 14
Frequently Asked Questions
1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional and largest manufacturers of testing equipment in China. Every machine purchased from our factory comes with:
  • 12 months warranty after shipment
  • 12 months free maintenance (extendable by 2 months for sea transportation)
  • 24-48 hour response time for technical support via email or video chat
2. What's the delivery term?
Standard machines are typically available from stock. For non-stock items:
  • Normal delivery time: 15-20 working days after deposit receipt
  • Urgent orders can be accommodated with special arrangements
3. Do you accept customization service? Can I have my logo on the machine?
Yes, we offer comprehensive customization options:
  • Custom machines according to specific requirements
  • OEM and ODM services including logo placement
4. How can I install and use the machine?
Our machines are designed for easy setup:
  • English operation videos provided via email
  • Most machines ship fully assembled - just connect power
  • On-site installation assistance available when needed
Universal Testing Machine Tensile Strength Tester with ASTM D903 GB/T2790/2791/2792 and CNS11888 Standards 15
