Liyi 300KN Universal Testing Machine with 800mm Drawing Space

Liyi 300KN Universal Testing Machine with 800mm Drawing Space
Liyi 300KN Universal Testing Machine with 800mm Drawing Space Liyi 300KN Universal Testing Machine with 800mm Drawing Space Liyi 300KN Universal Testing Machine with 800mm Drawing Space Liyi 300KN Universal Testing Machine with 800mm Drawing Space Liyi 300KN Universal Testing Machine with 800mm Drawing Space Liyi 300KN Universal Testing Machine with 800mm Drawing Space

Gambar besar :  Liyi 300KN Universal Testing Machine with 800mm Drawing Space

Detail produk:
Tempat asal: Cina
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kontak

Liyi 300KN Universal Testing Machine with 800mm Drawing Space

Deskripsi
Kekuatan: 1.5kw Ketepatan: ± 0,5%
Voltase: 220V, 380V, 240V, 110V MAX LOAD: 300kn
Rentang tes: 6KN-300KN Akurasi kekuatan tes: 1%
Resolusi perpindahan: 0.01mm Akurasi uji deformasi: 0,5%
Ruang gambar maks: 800mm Langkah Piston: 250mm
Catu daya: 380v Berat: 2800kg
Ruang kompresi maks: 700mm Ketebalan klem sampel datar: 0-15mm
Diameter penjepit sampel bulat: φ6-φ26mm
Menyoroti:

300KN universal testing machine

,

universal testing machine with 800mm drawing space

,

Liyi universal testing machine

Liyi 100 Ton Universal Bending Mechanical Test Machine
Key Specifications
Attribute Value
Customized Support OEM, ODM, OBM
Power 1.5KW
Accuracy ±0.5%
Voltage 220V, 380V, 240V, 110V
Type Testing machine
Protection Class IP56
Max Load 300KN
Test Range 6KN-300kN
Test Force Accuracy 1%
Displacement Resolution 0.01mm
Deformation Test Accuracy 0.5%
Max Drawing Space 800mm
Piston Stroke 250mm
Power Supply 380V
Weight 2800kg
Product Overview

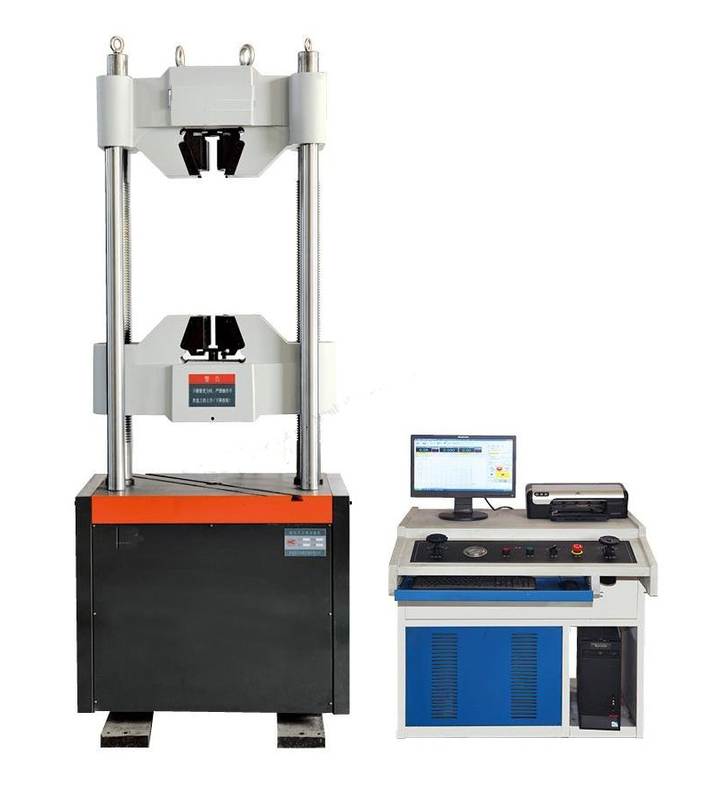

The Liyi hydraulic universal testing machine is designed for tension, compression, bending, and shearing tests on metal materials. With additional accessories, it can perform various mechanical performance tests.

Key Features
  • Bottom-mounted oil cylinder with tension space above the load frame
  • Compression and bending space between lower cross head and working table
  • Motor-driven lower cross head for adjustable testing space
  • Load cell measurement with computer control and display
Technical Specifications
Model LYH-300D LYH-600D LYH-1000D LYH-2000D
Max Load(kN) 300 600 1000 2000
Test Range 6KN-300kN 12KN-600kN 20KN-1000kN 40KN-2000kN
Test Force Accuracy ±1% ±1% ±1% ±1%
Displacement Resolution 0.01mm 0.01mm 0.01mm 0.01mm
Deformation Test Accuracy ±0.5% ±0.5% ±0.5% ±0.5%
Max Drawing Space 800mm 800mm 850mm 800mm
Max Compressing Space 700mm 700mm 700mm 700mm
Weight 2800kg 3000kg 4700kg 6500kg
Product Images
Liyi 300KN Universal Testing Machine with 800mm Drawing Space 0 Liyi 300KN Universal Testing Machine with 800mm Drawing Space 1 Liyi 300KN Universal Testing Machine with 800mm Drawing Space 2 Liyi 300KN Universal Testing Machine with 800mm Drawing Space 3
Frequently Asked Questions
Are you the manufacturer? What about after-sales service and warranty?

Yes, we are a professional manufacturer of testing equipment. All machines come with 12 months warranty after shipment, including free maintenance. For overseas shipments, we extend this to 14 months. Technical support is available via email or video chat, with solutions typically provided within 24-48 hours.

What is the delivery time?

Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. Urgent orders can be accommodated with special arrangements.

Do you offer customization and branding options?

Yes, we provide both standard and customized machines according to customer requirements. OEM and ODM services are available, including custom branding with your logo.

How is installation handled?

Most machines ship fully assembled - just connect power to begin operation. We provide English operation videos via email. For complex installations, we can provide on-site assistance if needed.

Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high-tech enterprise specializing in environmental testing equipment. With advanced technology and experienced personnel, we serve customers in over 150 countries from our manufacturing base in Dongguan, China.
