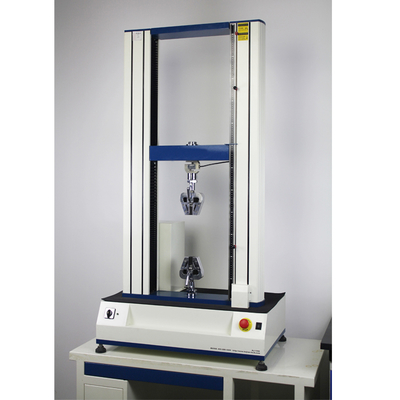

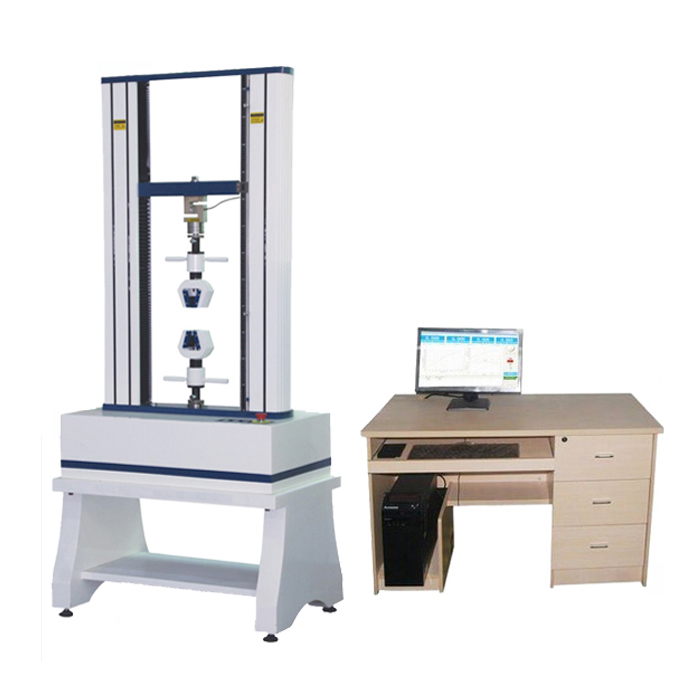

Electronic Universal Testing Machine with Panasonic Servo Motor 5-5000KG

Electronic Universal Testing Machine with Panasonic Servo Motor 5-5000KG
Electronic Universal Testing Machine with Panasonic Servo Motor 5-5000KG Electronic Universal Testing Machine with Panasonic Servo Motor 5-5000KG Electronic Universal Testing Machine with Panasonic Servo Motor 5-5000KG Electronic Universal Testing Machine with Panasonic Servo Motor 5-5000KG Electronic Universal Testing Machine with Panasonic Servo Motor 5-5000KG Electronic Universal Testing Machine with Panasonic Servo Motor 5-5000KG

Gambar besar :  Electronic Universal Testing Machine with Panasonic Servo Motor 5-5000KG

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: Liyi
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kontak

Electronic Universal Testing Machine with Panasonic Servo Motor 5-5000KG

Deskripsi
Kekuatan: Elektronik Motor: motor sevor panasonic
Kapasitas: 5,10,20,50.100.200.500,1000,2000,5000kg Opsional Stroke: 800mm (tidak termasuk fixture)
Kecepatan tes: 0,5 ~ 500mm/mnt (kontrol dengan input keyboard) Ketepatan: 0,5%
Resolusi: 1/250.000 Catu daya: 220V/50Hz atau 110V/60Hz
Dimensi: 80*50*150cm Berat: 90kg
Ruang tarik yang efektif: 1200mm (berisi genggaman) Lebar uji efektif: 400mm | 320mm
Akurasi kecepatan: Kurang dari ±0,5% Akurasi perpindahan: Kurang dari ±0,5%
Akurasi uji deformasi: Kurang dari ±0,5%
Menyoroti:

Universal Testing Machine with Panasonic Servo Motor

,

Electronic Universal Testing Machine 5-5000KG

,

Universal Testing Machine with warranty

Liyi Tensile Strength Tester Rubber Testing Machine
Key Specifications
Attribute Value
Warranty 12 months
Customized Support OEM, ODM
Power Electronic
Motor Panasonic servo motor
Operation Computer Windows operation
Capacity 5,10,20,50,100,200,500,1000,2000,5000KG (optional)
Stroke 800mm (not including fixture)
Test Speed 0.5~500mm/min (control by keyboard input)
Accuracy 0.5%
Resolution 1/250,000
Power Supply 220V/50HZ or 110V/60HZ
Dimension 80×50×150cm
Weight 90kg
Product Description
The Liyi tensile testing machine is widely used in aviation, aerospace, petroleum chemical industry, machinery manufacturing, metal materials, wire and cable, paper, printing and packaging industries. It performs comprehensive physical property testing for various materials and products, including:
  • Tensile and compression testing
  • Pull, bending, tear, and peel tests
  • Adhesion and shear testing
Safety Features
  • Upper and lower limit safety settings
  • Emergency stop button
  • Strength and elongation program settings
  • Specimen damage sensor
Technical Specifications
Model LY-1066A LY-1066B
Capacity 1,2,5,10,20,50,100,200,500,1000,2000kg (optional or customize)
Accuracy Level 0.5
Effective Pull Space 1200mm (contain grips)
Effective Test Width 400mm 320mm
Test Speed 0.1~500mm/min 50~500mm/min
Motor System Panasonic servo motor + Panasonic servo drive AC motor + AC drive
Software Control Fully computer controlled, capable of constant stress, constant strain, constant displacement tests
Product Images
Electronic Universal Testing Machine with Panasonic Servo Motor 5-5000KG 0
Electronic Universal Testing Machine with Panasonic Servo Motor 5-5000KG 1
Electronic Universal Testing Machine with Panasonic Servo Motor 5-5000KG 2
Frequently Asked Questions
1. Are you the manufacturer? What about after-sales service and warranty?
Yes, we are a professional manufacturer of testing equipment. Every machine comes with 12 months warranty after shipment. We offer free maintenance during this period, extended by 2 months to account for shipping time. For technical issues, we provide solutions within 24-48 hours after problem confirmation.
2. What is the delivery time?
Standard machines are typically available within 15-20 working days after deposit receipt. We can arrange expedited production for urgent orders.
3. Do you accept customization and branding?
Yes, we offer both OEM and ODM services, including custom machine configurations and branding with your logo.
4. How do I install and use the machine?
Most machines are shipped fully assembled - just connect the power cable to begin use. We provide English operation videos and can assist with on-site installation if required.
