Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity

Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity
Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity

Gambar besar :  Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: Liyi
Nomor model: Liyi
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kontak

Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity

Deskripsi
Kekuatan: Elektronik Motor: motor sevor panasonic
Kapasitas: 5,10,20,50.100.200.500,1000,2000,5000kg Opsional Stroke: 800mm (tidak termasuk fixture)
Kecepatan tes: 0,5 ~ 1000mm/mnt Ketepatan: 0,5% atau lebih baik
Resolusi: 1/250.000 1/150.000 Catu daya: 220V/50Hz atau 110V/60Hz
Dimensi: 80*50*150cm Berat: 90kg
Kapasitas muatan maksimal: 500kg Sel beban opsional: 1,2,5,10,20,50,100.200.500kg
Paksa kesalahan relatif: ± 0,5% Rentang kecepatan tes: 0,1 ~ 500mm / mnt
Test Stroke: 850mm (berisi klem)
Menyoroti:

Universal Testing Machine with Panasonic Motor

,

Universal Testing Machine 5000KG Capacity

,

Universal Testing Machine with warranty

Liyi Tensometer Strength Tester Universal Tensile Test Bench 3 Point Bending Test Machine
Product Specifications
Attribute Value
Warranty 12 months
Customized Support OEM, ODM
Power Electronic
Motor Panasonic sevor motor
Operation Computer windows operation
Capacity 5,10,20,50,100,200,500,1000,2000,5000KG (optional)
Stroke 800mm (not including fixture)
Test Speed 0.5~1000mm/min (control by keyboard inputing)
Accuracy 0.5% or better
Resolution 1/250,000 1/150,000
Power 220V/50HZ or 110V/60HZ
Dimension 80*50*150CM
Weight 90kg
Product Description

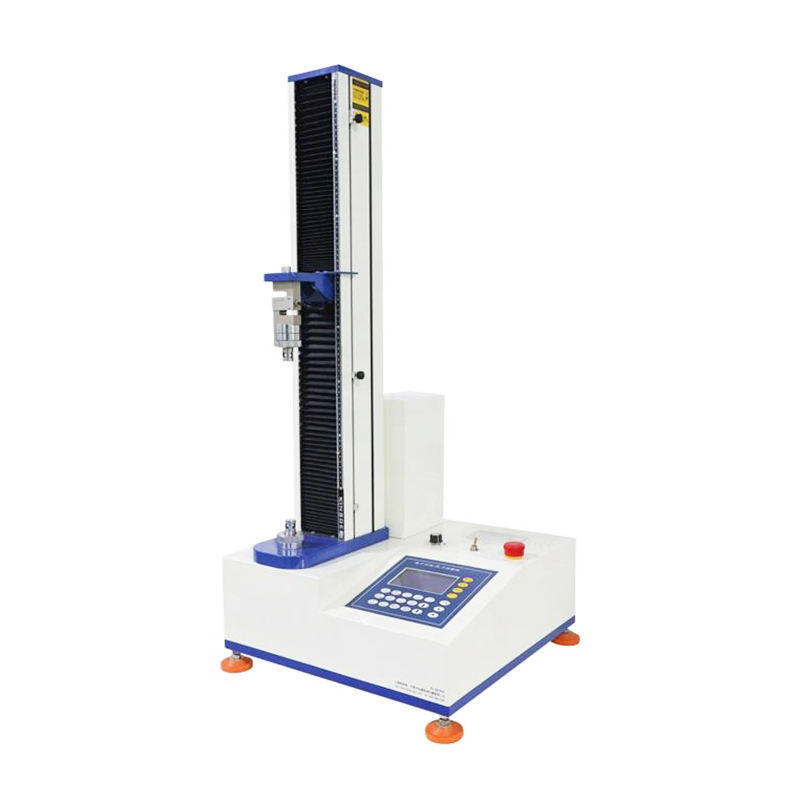

The Liyi Universal Testing Machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack, and fatigue cycling tests on various materials including metals, tape, composites, alloys, rigid plastics, films, elastomers, textiles, paper, board, and finished products.
Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity 0
Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity 1
Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity 2
Technical Specifications
Model LY-1065 LY-1068
Accuracy Class 0.5 0.5
Max Load Capacity 500KG
Optional Load Cell 1,2,5,10,20,50,100,200,500kg
Resolution 1/250,000 1/150,000
Force Relative Error ±0.5% ±0.5%
Test Speed Range 0.1~500mm/min 50~500mm/min
Motor Panasonic Sevor Motor AC Inverter Motor
Test Stroke (Contain Clamps) 850mm
Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity 3
Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity 4
Liyi Universal Testing Machine with Panasonic Motor 5-5000KG Capacity 5
Frequently Asked Questions
1. Are you Manufacturer? Do you offer after-sales service? How can I ask for that? And how about the warranty?
Yes, we are one of the professional and largest manufacturers of testing equipment in China. Every machine purchased from our factory comes with a 12-month warranty after shipment. We offer 12 months of free maintenance, with an additional 2 months extension to account for sea transportation time.
If your machine requires service, you can contact us via email or phone. We will diagnose the problem through conversation or video chat if necessary, and provide a solution within 24 to 48 hours.
2. What's the delivery term?
Standard machines are typically available from stock. If not in stock, normal delivery time is 15-20 working days after deposit receipt. We can arrange expedited delivery for urgent needs.
3. Do you accept customization service? Can I have my logo on the machine?
Yes, we offer both standard and customized machines according to your requirements. We provide OEM and ODM services, including adding your logo to the machine.
4. How can I install and use the machine?
We provide an English operation video via email with your order. Most machines are shipped fully assembled - you only need to connect the power cable to begin use. If required, we can also assist with on-site installation.
