Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement

Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement
Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement

Gambar besar :  Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement

Detail produk:
Tempat asal: Guangdong, Cina
Nama merek: Liyi
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1
Kontak

Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement

Deskripsi
Pilihan kapasitas: 1,2,5,10,20,50,100.200.500kg Opsional Stroke: 650mm (tidak termasuk klem), dapat disesuaikan
Kecepatan tes: 0,5 ~ 500mm / mnt Ruang pengujian yang efektif: 120mm
Berat: 70kg Ketepatan: ± 0,5%
Resolusi: 1/250.000 Dimensi: 58*58*125cm
Motor: Motor Servo Panasonic Jepang Kekuatan: 1PH, AC220V, 50/60Hz
Metode operasi: Operasi Windows Standar: Astm
Warna: Diperlukan pelanggan Aksesoris: Komputer, printer, manual operasi sistem
Aksesori opsional: Tandu, klem
Menyoroti:

2kN Capacity Universal Testing Machine

,

ASTM D3039 ISO 6892 Tensile Strength Tester

,

0.5% Accuracy Material Testing Equipment

Liyi ASTM D3039 ISO 6892 ASTM D828 ISO 37 Yarn Testing Equipment 2kn Stretching Tester
Product Overview
This professional tensile strength measurement test device is designed for accurate testing of various materials including fabric, yarn, textiles, paper, wire, clothing, leather, metal, alloy, and chemical products.
Design Standards
Compliant with ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7 standards.
Applications
  • 180° and 90° peel force testing
  • T-shape peeling tests
  • Tensile, shearing, splitting, compression, and push strength testing
  • Compatible with various industry-specific clamps
Technical Specifications
Specification Details
Capacity options 1, 2, 5, 10, 20, 50, 100, 200, 500kg (optional)
Stroke 650mm (excluding clamp), customizable
Speed range 0.5-500mm/min
Effective testing space 120mm
Weight 70kg
Accuracy ±0.5%
Operation method Windows operation
Resolution 1/250,000
Dimensions (W×D×H) 58×58×125cm
Motor Japanese Panasonic servo motor
Power 1PH, AC220V, 50/60Hz
Standard Accessories
  • Computer
  • Printer
  • System operation manual
Optional Accessories
  • Stretcher
  • Specialized clamps
Product Images

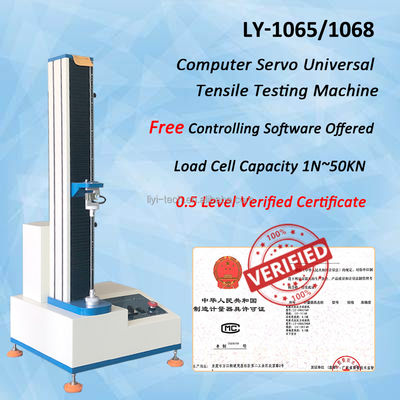

Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement 0

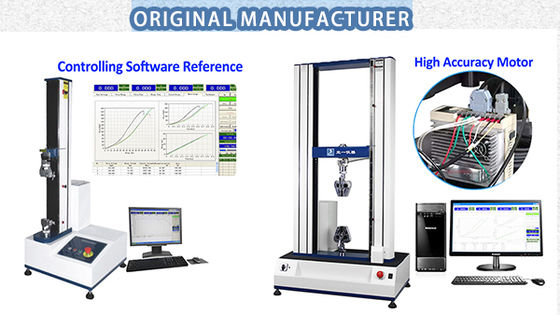

Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement 1

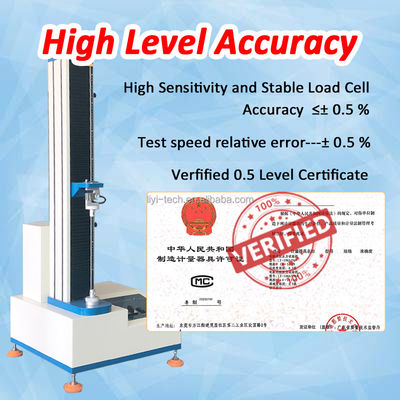

Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement 2
Manufacturer Information
Dongguan Liyi Environmental Technology Co., Ltd
We are a high-tech production-oriented enterprise specializing in developing and manufacturing various environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we serve customers in over 150 countries.
Our production base is located in Dongguan, Guangdong province, China, with an additional office in Kunshan, Jiangsu province for Eastern China market support. We are committed to innovation and combining international testing standards with customer-specific requirements.

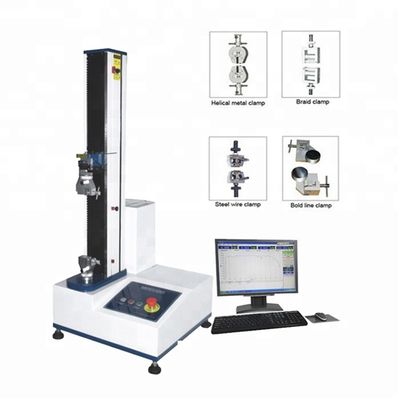

Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement 3
Frequently Asked Questions
1. Are you the manufacturer? What about after-sales service and warranty?
Yes, we are a professional manufacturer of testing equipment. All machines come with 12 months warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty period and offer technical support via email or video chat, with solutions typically provided within 24-48 hours.
2. What is the delivery time?
Standard machines are typically delivered within 15-20 working days after deposit receipt. We can arrange expedited shipping for urgent orders.
3. Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to customer requirements, including OEM services with your logo on the equipment.
4. How do I install and use the machine?
Most machines are shipped fully assembled - just connect the power cable to begin use. We provide English operation videos via email and can assist with on-site installation if needed.
Universal Testing Machine with 2kN Capacity ASTM D3039 ISO 6892 Standard and 0.5% Accuracy for Tensile Strength Measurement 4
