Liyi Tensile Test Equipment - Universal Testing Machine
Product Overview

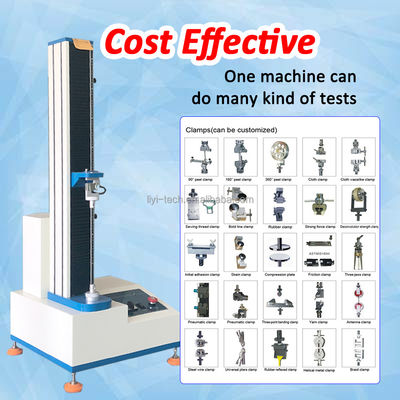

The Liyi universal testing machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling tests on various materials including metals, tape, composites, alloys, rigid plastics, films, elastomers, textiles, paper, board and finished products.
Design Standards
ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7
Technical Specifications

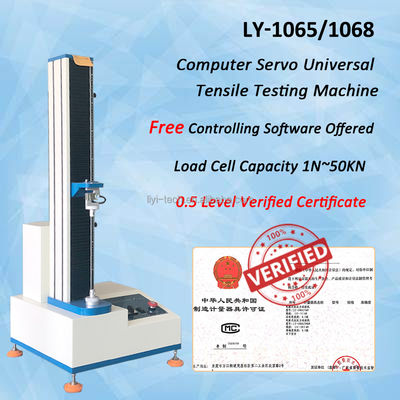

| Model |
LY-1065 |
LY-1068 |

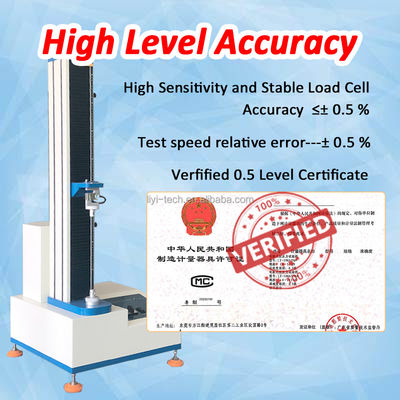

| Accuracy Class |
0.5 |
0.5 |
| Max Load Capacity |
500KG |
- |
| Optional Load Cell |
1,2,5,10,20,50,100,200,500kg |
- |
| Resolution |
1/250,000 |
1/150,000 |
| Force Relative Error |
±0.5% |
±0.5% |
| Test Speed Range |
0.1~500mm/min |
50~500mm/min |
| Motor |
Panasonic Servo Motor |
AC Inverter Motor |
| Test Stroke (Contain Clamps) |
850mm |
- |
Product Details
Company Profile

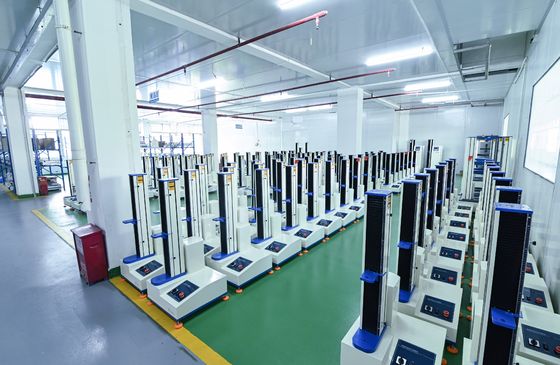

Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced personnel, and a complete quality management system, we serve customers in over 150 countries.
Frequently Asked Questions
1. Are you the manufacturer? What about after-sales service and warranty?
Yes, we are a professional manufacturer of testing equipment. All machines come with 12 months warranty after shipment, including free maintenance. For urgent issues, we provide solutions within 24-48 hours through email or video support.
2. What's the delivery time?
Standard machines typically ship within 15-20 working days after deposit. We can expedite for urgent orders and offer special arrangements when needed.
3. Do you accept customization and OEM services?
Yes, we offer both standard and customized machines according to your requirements, including OEM services with your logo on the equipment.
4. How do I install and use the machine?
We provide English operation videos with each machine. Most units ship fully assembled - just connect power to begin testing. For complex installations, we offer on-site assistance.
